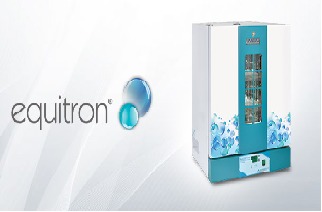

Oven - Stream Series

Oven - Stream Series
Oven - Stream Series
Product Code : #7051-091
Brand Name : equitron
Product Description

    Applications:

  • EQUITRON Forced Convection Oven is ideally suitable for any laboratory application requiring a controlled temperature environment upto 200ºC.

EQUITRON Advantages:

  • Glass window in-built into the door.

  • Forced convection design ensures a high level of control accuracy and uniformity.

  • Automatic cut off of heater & blower when door opened.

  • Digital PID temperature controller with timer, alarms and auto tuning.

  • Non contact type door switch.

  • Aero dynamic internal design for achieving horizontal air circulation.

  • Solid and plain bottom without electricals.

  • Seamless round cornered edge of internal chamber ensures easy cleaning & prevents any leakage.

  • Supplied with stainless steel wire mesh shelves. Shelf height adjustable in 25mm steps.

  • Temp range: +50ºC to 200ºC.

  • Control accuracy: ±0.2ºC.

  • CE certified.

Model

Inner dimensions
(WxDxH)/ Capacity

Outer Dimension (WxDxH)

Shelves

Packing Dimensions (WxDxH) / Gr weight

#7051-091

450 x 450 x 450 mm / 91 L

640 x 780 x 800 mm

2

970 x 810 x 990 mm /
89 kg

#7051-150

500 x 500 x 600 mm / 150 L

690 x 830 x 950 mm

2

1020 x 890 x 1130 mm /
115 kg

#7051-250

600 x 600 x 700 mm / 250 L

790 x 930 x 1050 mm

3

1120 x 970 x 1220 mm /
145 kg
